TIMER BASED WATER LEVEL CONTROLLER (Wi-Fi/2G)

Timer based water level controller operates on 230VAC mains and handles maximum load capacity of 3KW. Automatically control the motor unit of the water tank based on configured time by the user. It comes with motor protection mechanism against over voltage, under voltage, over current, and dry run.

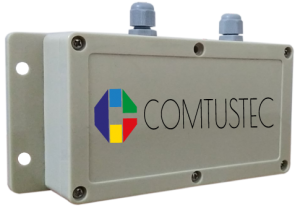

MOTOR TIMER CONTROLLER

Note: The system is also be used for control other electrical devices.

MODES:

During the initial setup of users can configure the device in online or offline mode.The users have to re-configure the device after changing the previous mode. Any time the user can change these modes. With the device, users can get alert if the tank is not clean and they can check the tank leakage.

ONLINE:

The user need to have internet connection, download the android mobile app to configure the WIFI network and water level etc of this display unit. In online mode user can view the water level, battery level of senor unit, control the motor/pump from remote location.

OFFLINE:

No internet connection needed, The user can configure the motor control unit through their smart phone using the hotspot of the phone, can view the water level, battery level of senor unit, control the motor/pump within the range 5 to 10 meter of the motor/pump control unit.
