Water Level Monitor
SMARTTANK – Water Level Monitor is a complete wireless, plug and play solution. Mainly, designed for water tank level monitoring and level alerts. The tank water level will be automatically calibrated with 1cm accuracy. The solution comes with Floatable Sensor Unit, Display Unit and Android application support.

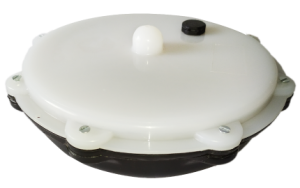

SENSOR UNIT
Ultrasonic based floatable sensor. The users have to insert the battery into the device and drop it into the water tank.
The floatable sensor measures the water level in the unit of centimeters and transmits the level data through wireless to the display unit.
The device needs 6 Numbers of AA alkaline battery, which shall last for 6 months depends on the configuration.
- The Maximum measuring height: 150cm
- The Minimum measuring height: 10cm
- Accuracy of measurement: 1cm

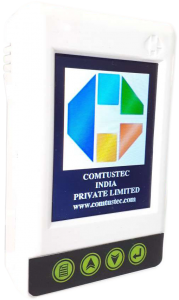

DISPLAY UNIT
Plug and play, display unit. The users can plug it in the standard 230V 3pin 5A power socket. The system actively displays the water level data and produces respective alerts based on the user setting based on the water level data received from the sensor unit.
The device can work in online (with internet) and offline mode (without internet). Through this device, users can monitor 1 to 4 sensor units, set various full and empty levels in centimeter-level for each and induvial storage tanks, and this can be changed whenever they want to change.
The device shows the battery level of each sensor unit and the user gets an individual sensor low battery alarm.
MODES:
During the initial setup of users can configure the device in online or offline mode.The users have to re-configure the device after changing the previous mode.
Any time the user can change these modes. With the device, users can get alert if the tank is not clean and they can check the tank leakage.
ONLINE:
The users need to have internet connection, download the android mobile app to configure the WIFI network and water level etc of this display unit. In online mode user can view the water level from remote location. In online mode the device posts seamless data and various alerts of water level to the server.
OFFLINE:
No need to internet connection, The users can configure the display unit through their smart phone using the hotspot of the phone and view the water level and configuration details within the range 5 to 10 meter of the display unit.
- Water Low level
- Water Full / Overflow
- Clean tank
- Sensor unit - Low battery

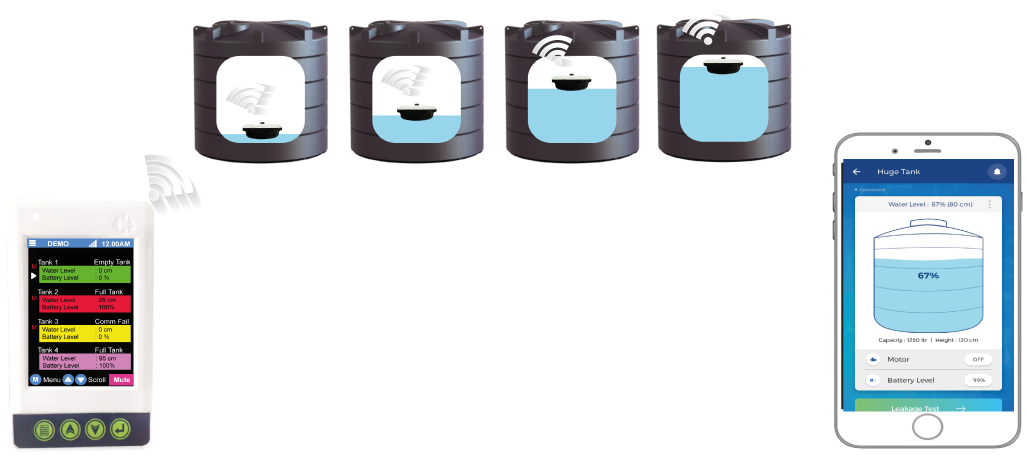

HOW IT WORKS
FEATURES
Easy to replace AA batteries
Clean Tank Alert
Long-range
Manage multiple tanks
Leakage Detection
Monitor water consumption
